23.8″ LED Lighted Flat Touch Display

Product Positioning

This 23.8-inch vertical (1080 × 1920 Full HD) LED-backlit touchscreen display is designed for modern interactive applications such as digital signage, smart kiosks, gaming interfaces, and self-service systems. With a sleek industrial-grade design and high-brightness visual performance, it delivers a premium user experience for commercial and industrial environments. It supports multiple communication protocols including 3M / TTL / HID / RS232, ensuring strong compatibility with different control systems and integration platforms

Flat & Minimalist Design Concept

The display adopts a modern flat-panel structure with ultra-thin bezels, providing a clean and immersive visual experience. Its vertical portrait orientation is optimized for content-driven applications such as advertisements, menus, queue systems, and interactive terminals. The LED RGB edge lighting enhances visual appeal, making the product more attractive in commercial environments such as retail stores, exhibitions, and gaming zones.

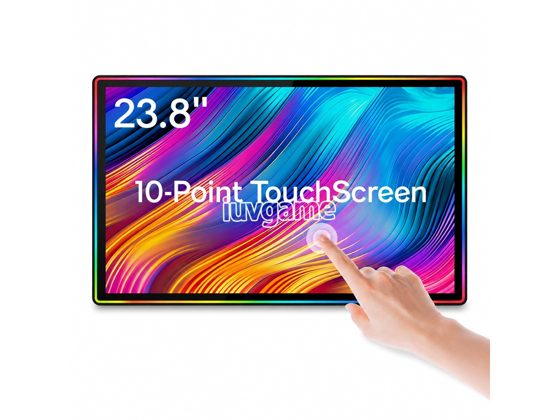

10-Point Capacitive Touch Technology

Equipped with advanced 10-point capacitive multi-touch technology, the screen supports smooth and highly responsive interaction. Key features: Fast touch response with high accuracy Supports multi-user interaction Anti-interference and stable performance Durable for continuous industrial use This ensures seamless operation for both commercial and self-service applications.

RGB Colorful Running Light Effect

The integrated RGB dynamic lighting system delivers a visually striking “running light” effect around the frame. It enhances the product’s modern and premium appearance, especially in low-light environments. Lighting features: Multi-color RGB dynamic transitions Adjustable lighting modes (based on system control) Enhances branding and visual attraction Ideal for gaming and entertainment environments

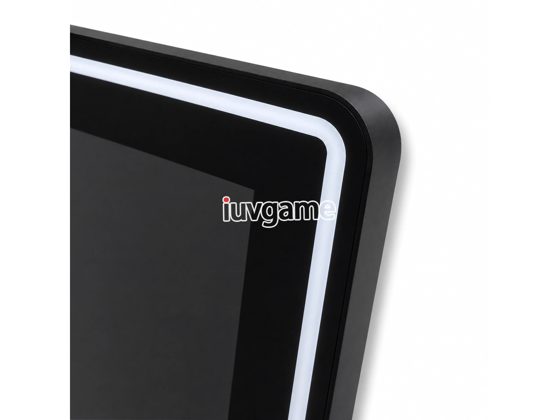

Industrial-Grade Aluminum Frame

The display is built with a high-strength industrial aluminum alloy frame, ensuring durability and stability in demanding environments. Advantages: Strong anti-corrosion and heat dissipation performance Reinforced structure for long-term operation Suitable for 24/7 commercial use Professional embedded or mounting installation support This makes it ideal for kiosks, industrial control systems, and commercial display solutions.

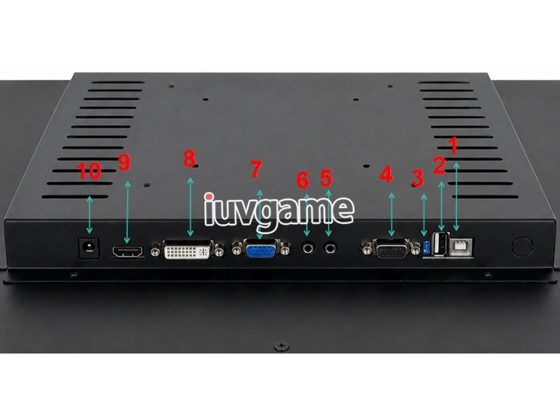

Interface Introduction

1. USB Touch Port 1
2. USB Touch Port 2
3. RS232 Touch Port
4. toggle switch
5. Audio Output
6. Audio Input
7. VGA Signal
8. DVI Signal
9. HDMI Signal
10. DC Power Input

Product Safety Instructions

Handling Warning: The LCD panel is made of glass and is fragile. Do not apply excessive pressure to the display area, drop it, or subject it to strong impact. Otherwise, the glass may crack or break, or the internal circuit may be permanently damaged.

Electrical Safety: Before powering on, confirm that the input voltage matches the rated specifications of the driver board. Do not use damaged power cables or interfaces to avoid electric shock, short circuit, or fire hazards.

Environmental Requirements: Keep the product away from direct sunlight, high temperature, high humidity, and dusty environments. Operating temperature: 0°C to 50°C. Storage temperature: -20°C to 60°C to prevent component aging and screen damage.

Waterproof & Dustproof: The bare panel is not waterproof. Do not expose it to liquids or corrosive gases. Proper sealing protection should be applied according to the housing design during assembly.

Do not disassemble or modify the panel without professional guidance. Otherwise, the warranty will be void, and irreversible damage may occur.

When cleaning the screen, use a lint-free soft cloth with neutral detergent. Do not use corrosive solvents such as alcohol or benzene to avoid damaging the anti-glare coating. Product code: FTD-238-2.
