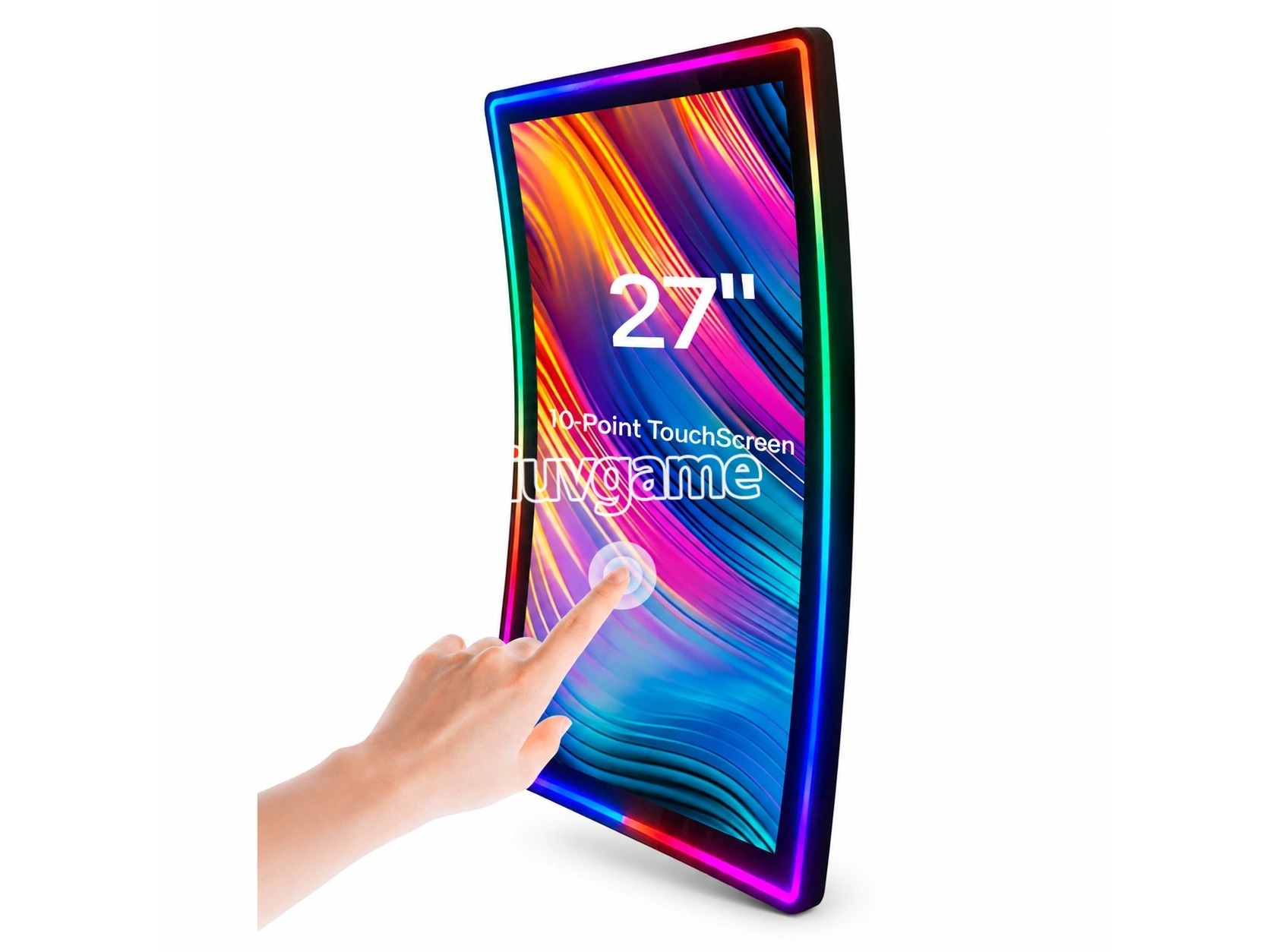

27-inch C-curved capacitive touch all-in-one display designed for commercial interactive applications. It combines 2K display, immersive curved viewing, capacitive touch control, and RGB running light effects, making it ideal for self-service kiosks, gaming equipment, and interactive advertising displays.

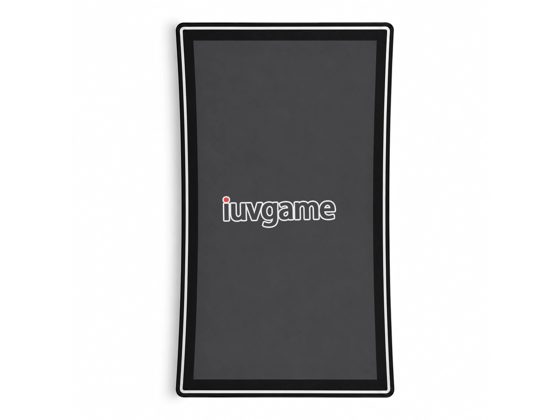

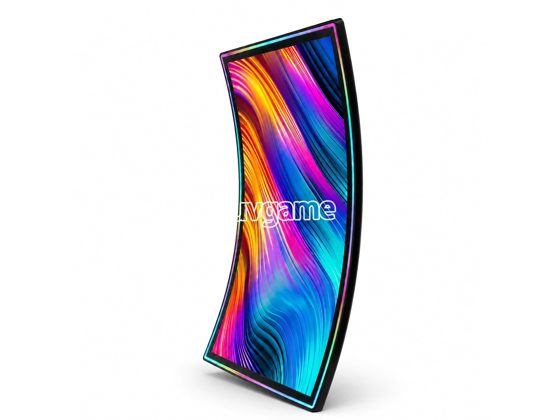

The customized concave curved screen delivers stronger visual wraparound and immersion than a flat display, creating greater visual impact for gaming and interactive display scenarios.
Equipped with capacitive touch technology, it supports accurate multi-point touch, fast response, strong anti-interference performance,

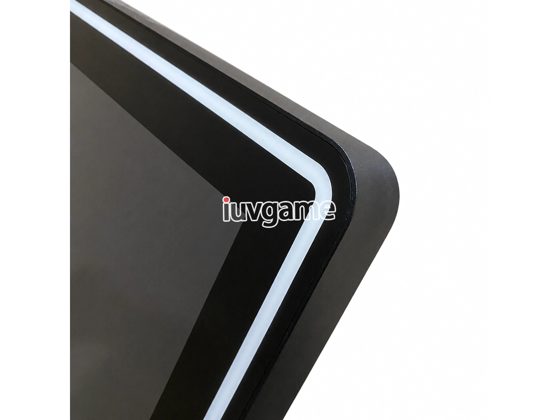

Dynamic RGB ambient lights around the screen support customizable colors, modes, and rhythm, creating a strong technology-style visual effect and improving product recognition.
The high-strength aluminum alloy frame is durable and provides excellent heat dissipation, suitable for long-term commercial operation. The housing supports customized painting and silk-screen printing.
Handling Warning: The LCD panel is made of glass and is fragile. Do not apply excessive pressure to the display area, drop it, or subject it to strong impact. Otherwise, the glass may crack or break, or the internal circuit may be permanently damaged.
Electrical Safety: Before powering on, confirm that the input voltage matches the rated specifications of the driver board. Do not use damaged power cables or interfaces to avoid electric shock, short circuit, or fire hazards.
Environmental Requirements: Keep the product away from direct sunlight, high temperature, high humidity, and dusty environments. Operating temperature: 0°C to 50°C. Storage temperature: -20°C to 60°C to prevent component aging and screen damage.
Waterproof & Dustproof: The bare panel is not waterproof. Do not expose it to liquids or corrosive gases. Proper sealing protection should be applied according to the housing design during assembly.
Do not disassemble or modify the panel without professional guidance. Otherwise, the warranty will be void, and irreversible damage may occur.
When cleaning the screen, use a lint-free soft cloth with neutral detergent. Do not use corrosive solvents such as alcohol or benzene to avoid damaging the anti-glare coating. Product code: CTD-27.
| Touch Type | PCAP capacitive |
|---|---|
| Touch Points | 10-point touch |
| Resolution | 1920 x 1080 |
| Brightness | 300 cd/m |
| Aspect Ratio | 16:9 |
| Interface | HDMI/DVI/VGA |
| Protocol | 3M TTL HID RS232 |
| Housing Material | Metal housing |
| Custom Service | YES |
| Product Type | LED Lighted Capacitive Touch Monitor |
|---|---|
| Size Engineering | Custom size development available |
| Display Resolution | HD / FHD / 2K / 4K (optional) |
| Touch Technology | Projected Capacitive Touch (10-point) |
| Touch Interface | USB Type-B |
| Video Input | DP/HDMI /DVI/ VGA (optional) |
| Frame Construction | Aluminum Alloy / Metal Housing |
| Method | VESA / Embedded / Wall-mount / Desktop Stand |
| Certifications | CE / FCC / RoHS / EMC / LVD |
| Screen Size | 27 inch |
| Radius | R1200 |
| Aspect Ratio | 16:9 |
| Backlight | LED Backlight |
| Life | 50,000+ hours |
| Resolution | 1080 × 1920 |
| Brightness | 300 cd/m² |
| Contrast Ratio | 1200:1 |
| Response Time | 5 ms |
| Pixel Pitch | 0.27963 (H) × 0.27963 (V) mm |
| Color | 1.07B |
| Viewing Angle | Full viewing angle, horizontal/vertical |
| Touch Solution | Projected G+FF capacitive touch technology |
| Touch Points | Standard 10-point touch, supports image zoom i |
| Scanning Accuracy | 4096 × 4096 |
| Communication | Full-speed USB2.0, USB3.0 |
| Theoretical Clicks | 60 million+ |
| Light Resistance | Works normally under sunlight, incandescent light, fluorescent light, and other strong light changes |
| Touch Data Output | Coordinate output |
| Surface Hardness | Tempered glass, Mohs 7 explosion-proof glass |
| OS Compatibility | Android / Windows |
| Driver | Driver-free, plug and play |
| Protocol | 3M TTL HID RS232 |
| Operating Condition | Indoor / Semi-outdoor optional |
|---|---|
| Touch Glass | Thickness / anti-glare / anti-fingerprint optional |
| Structural Design | Flat / Curved / Open frame / Embedded / J-shape |
| Front Frame Color | Black / Silver / White / Custom color |
| Lighting System | RGB LED / Edge light / Perimeter light customization |

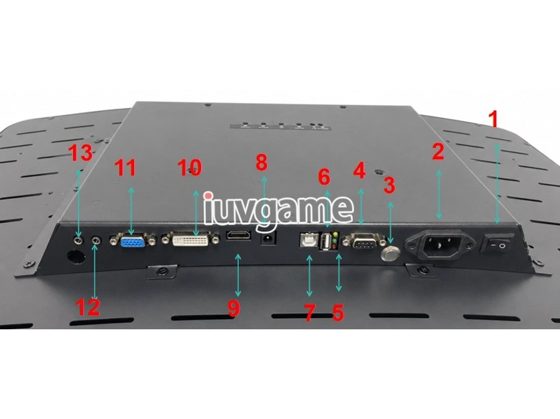

| Interface Engineering | USB / HDMI / VGA / RS232 / RS485 customization |
| Logo Integration | Silk print / metal logo / backlight logo optional |
| Packaging Solution | OEM carton / protective foam / drop-test packaging |
| Project Integration | Kiosk / industrial cabinet / commercial device integration |

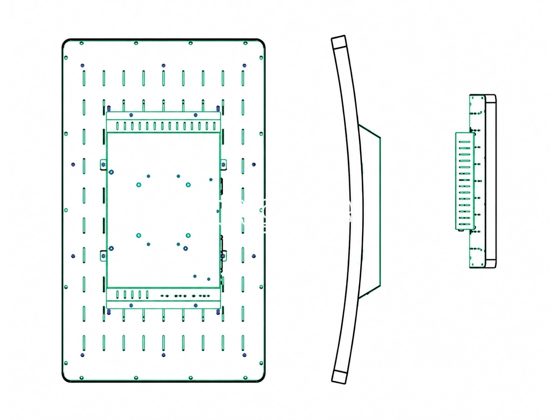

| Overall Width | 468.40 mm |
|---|---|
| Overall Height | 674.02 mm |
| Corner Radius | R20 (Rounded Corners) |
| Front Frame Thickness | 25.03 mm |
| Visible Display Area | 604.14 × 373.70 mm (Reference Structure Area) |
| Total Body Thickness (Max) | 96.35 mm |
| Rear Structural Depth | 184.01 mm |
| Internal Offset Depth | 59.06 mm |
| Bottom Step Depth | 37.29 mm |
| Offset Thickness | 76.85 mm |
| Type | Embedded / Rear Mount Compatible |
| Rear Mount Plate Size | 96.35 × 230 mm |
| Hole Type | M4 Nut (M4 Threaded Inserts) |
| Horizontal | 100 mm × 100 mm |
| Vertical | 100 mm × 100 mm |
| Side Support Offset | 89.2 mm × 2 |
| Internal Mounting Height | 230 mm |
| Rear Module Height | 408.4 mm |
| Curve Radius | R1493.27 mm |
| Structural Curve Offset | 59.06 mm |
| Total Arc Depth | 184.01 mm |
| Included |
|
|---|
Got questions? We've got answers. Find quick answers to common questions about this product.
The listed configuration uses a 27 inch panel.
It uses PCAP capacitive.
It is rated at 300 cd/m.
Certified to CE / FCC / RoHS / EMC / LVD.
