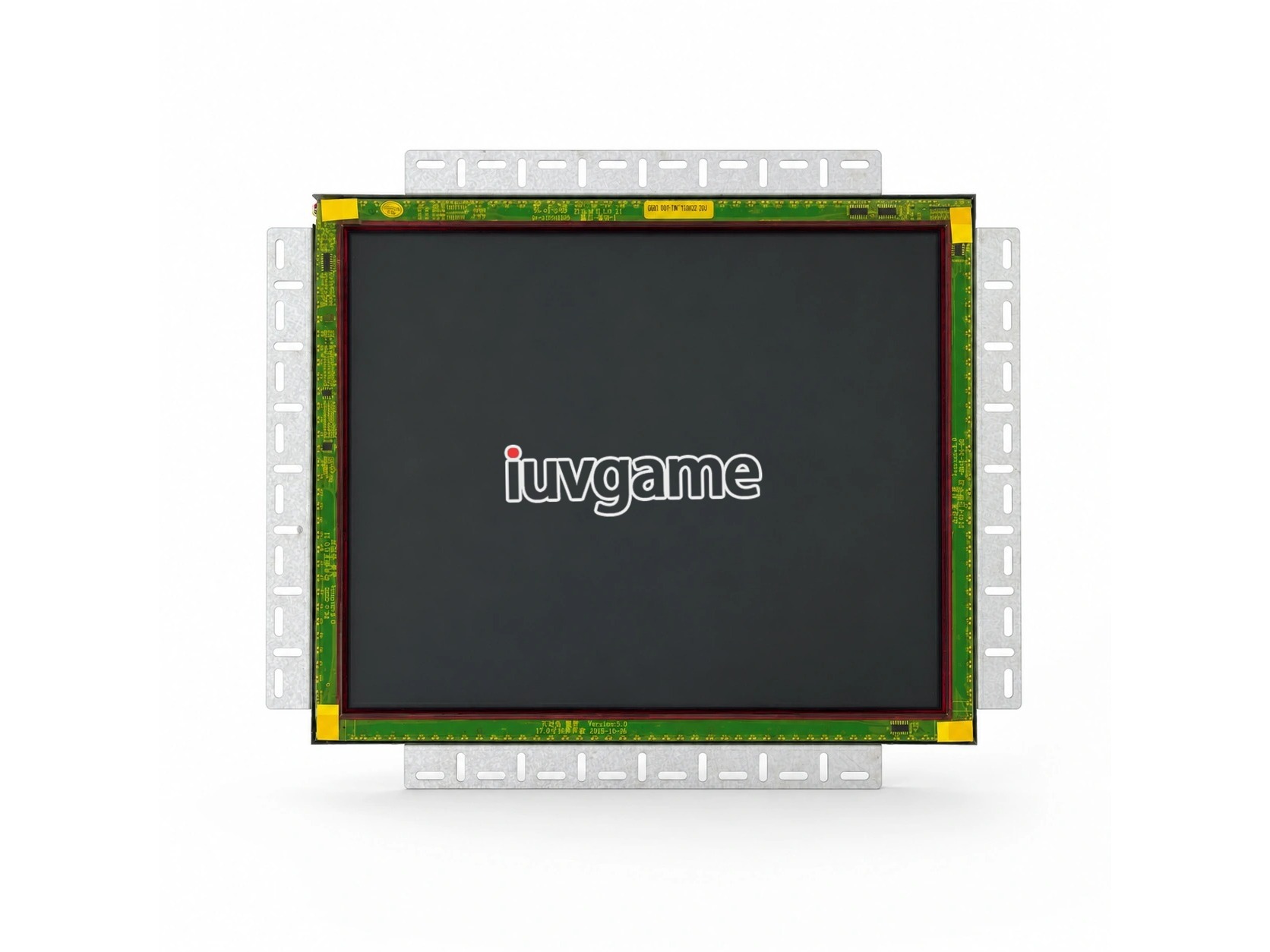

17″ Infrared Flat Touch Display

Product Positioning

A standard 17-inch 1080 × 1920 (2K) infrared flat touch display designed for clear image output, stable touch control and embedded equipment integration. It features a 4:3 display ratio, infrared touch technology and a reinforced metal structure, making it suitable for industrial control equipment, self-service equipment, information display systems and customized embedded applications.

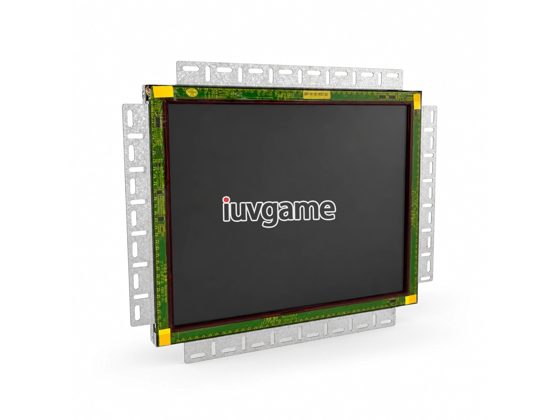

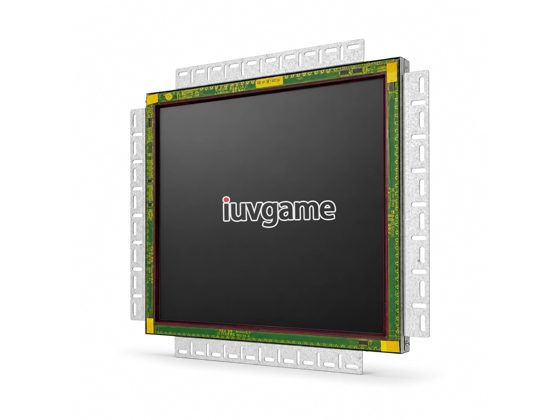

4:3 Flat Open-Frame Design

The product adopts a 4:3 flat display structure with an open-frame design. The front panel is simple and compact, while the surrounding metal mounting brackets make it convenient for embedded installation or integration into customer equipment. The flat structure helps the product fit into control panels, machine cabinets and customized display terminals.

Infrared Touch Technology

Equipped with infrared touch technology, the display supports accurate touch positioning, fast response and stable operation. The touch structure is suitable for tap, swipe and basic interactive control, providing reliable operation for commercial and industrial applications. Touch points can be configured according to the project requirement.

2K Clear Display

This model uses a 15-inch 4:3 LCD panel with 2K resolution for clear image presentation and detailed display performance. The screen is suitable for equipment operation interfaces, monitoring systems, information display pages and customized control software.

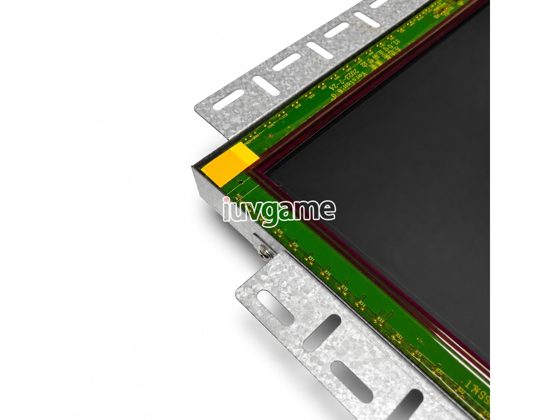

Industrial-Grade Metal Housing

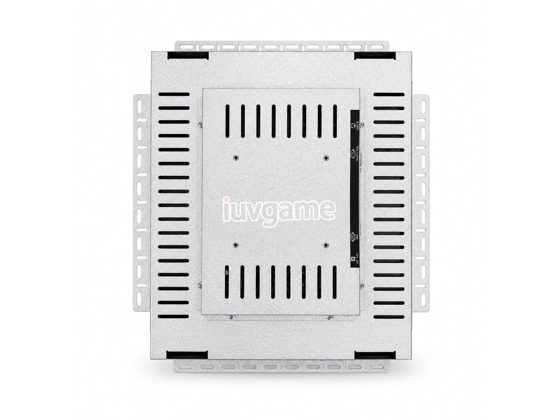

The product is built with a reinforced metal housing and open-frame mounting structure. The rear metal cover provides good structural strength, heat dissipation and installation stability. Ventilation holes, side brackets and rear mounting holes support long-term equipment integration and commercial use.

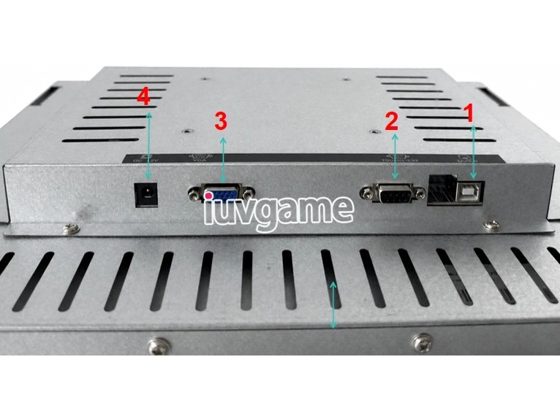

Interface Introduction

1. USB Touch Port 1
2. RS232 Touch Port
3. VGA Signal
4. DC Power Input

Product Safety Instructions

Handling Warning: The LCD panel is made of glass and is fragile. Do not apply excessive pressure to the display area, drop it, or subject it to strong impact. Otherwise, the glass may crack or break, or the internal circuit may be permanently damaged.

Electrical Safety: Before powering on, confirm that the input voltage matches the rated specifications of the driver board. Do not use damaged power cables or interfaces to avoid electric shock, short circuit, or fire hazards.

Environmental Requirements: Keep the product away from direct sunlight, high temperature, high humidity, and dusty environments. Operating temperature: 0°C to 50°C. Storage temperature: -20°C to 60°C to prevent component aging and screen damage.

Waterproof & Dustproof: The bare panel is not waterproof. Do not expose it to liquids or corrosive gases. Proper sealing protection should be applied according to the housing design during assembly.

Do not disassemble or modify the panel without professional guidance. Otherwise, the warranty will be void, and irreversible damage may occur.

When cleaning the screen, use a lint-free soft cloth with neutral detergent. Do not use corrosive solvents such as alcohol or benzene to avoid damaging the anti-glare coating. Product code: FTD-17.
