18.5″ Flat Touch Display

Product Positioning

A standard 18.5-inch 2K flat capacitive touch display designed for clear image output, reliable touch control and equipment integration. It focuses on basic display and touch functions, making it suitable for commercial display systems, control terminals, information display equipment and customized embedded applications.

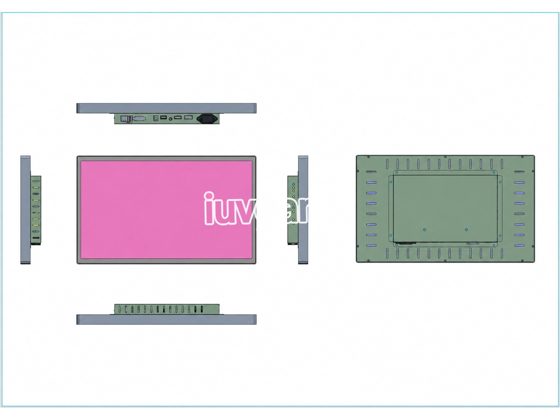

Horizontal Flat Design

The horizontal 16:9 flat screen structure adopts an all-black equal-border appearance with a simple and professional visual style. It can be used as a standalone touch display or integrated into customer equipment according to the final installation requirements.

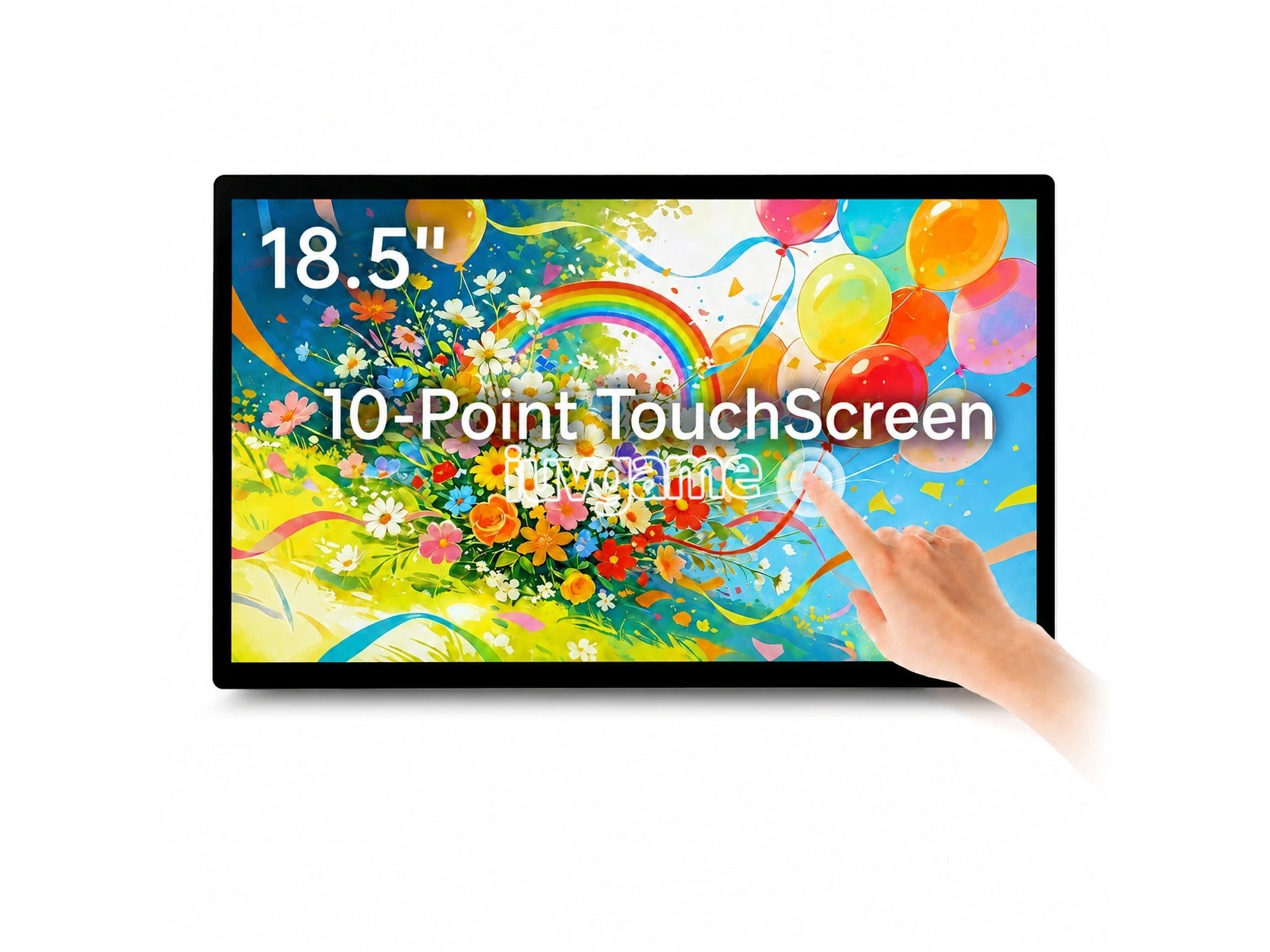

10-Point Capacitive Touch

Equipped with projected capacitive touch technology, it supports accurate 10-point touch, fast response and smooth operation. Common gestures such as tap, swipe, drag and zoom can be supported depending on the system software.

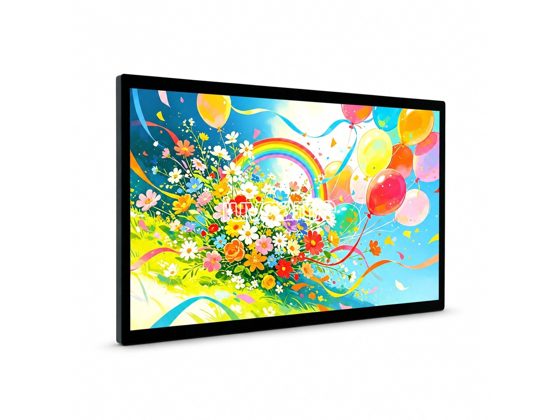

Clear Display & Non-Lighted Frame Design

This model is a standard flat display without decorative LED lighting. The LED-backlit LCD panel provides clear image presentation, while the clean black frame keeps the appearance simple, stable and easy to integrate into different equipment designs.

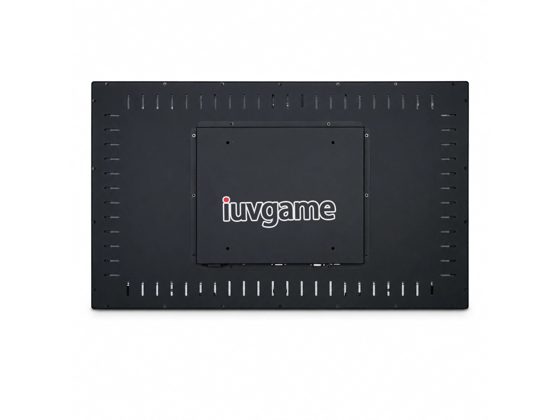

Industrial-Grade Metal Housing

The reinforced metal housing provides good structural strength, heat dissipation and installation stability. Rear mounting holes, ventilation openings and the flat back-cover structure support long-term commercial operation and embedded integration.

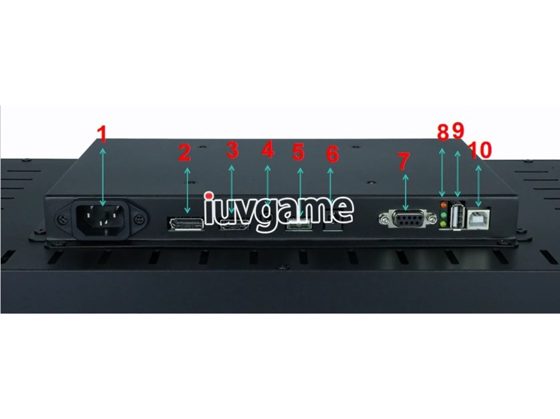

Interface Introduction

1. 110/220V Power Input
2. DP Signal
3. HDMI Signal Input
4. audio
5. USB Touch Port 1
6. DC Power Input
7. RS232 Touch Port
8. Touch Direction Indicator
9. USB Touch Port 2
10. USB Touch Port 3

Product Safety Instructions

Handling Warning: The LCD panel is made of glass and is fragile. Do not apply excessive pressure to the display area, drop it, or subject it to strong impact. Otherwise, the glass may crack or break, or the internal circuit may be permanently damaged.

Electrical Safety: Before powering on, confirm that the input voltage matches the rated specifications of the driver board. Do not use damaged power cables or interfaces to avoid electric shock, short circuit, or fire hazards.

Environmental Requirements: Keep the product away from direct sunlight, high temperature, high humidity, and dusty environments. Operating temperature: 0°C to 50°C. Storage temperature: -20°C to 60°C to prevent component aging and screen damage.

Waterproof & Dustproof: The bare panel is not waterproof. Do not expose it to liquids or corrosive gases. Proper sealing protection should be applied according to the housing design during assembly.

Do not disassemble or modify the panel without professional guidance. Otherwise, the warranty will be void, and irreversible damage may occur.

When cleaning the screen, use a lint-free soft cloth with neutral detergent. Do not use corrosive solvents such as alcohol or benzene to avoid damaging the anti-glare coating. Product code: FTD-185.
